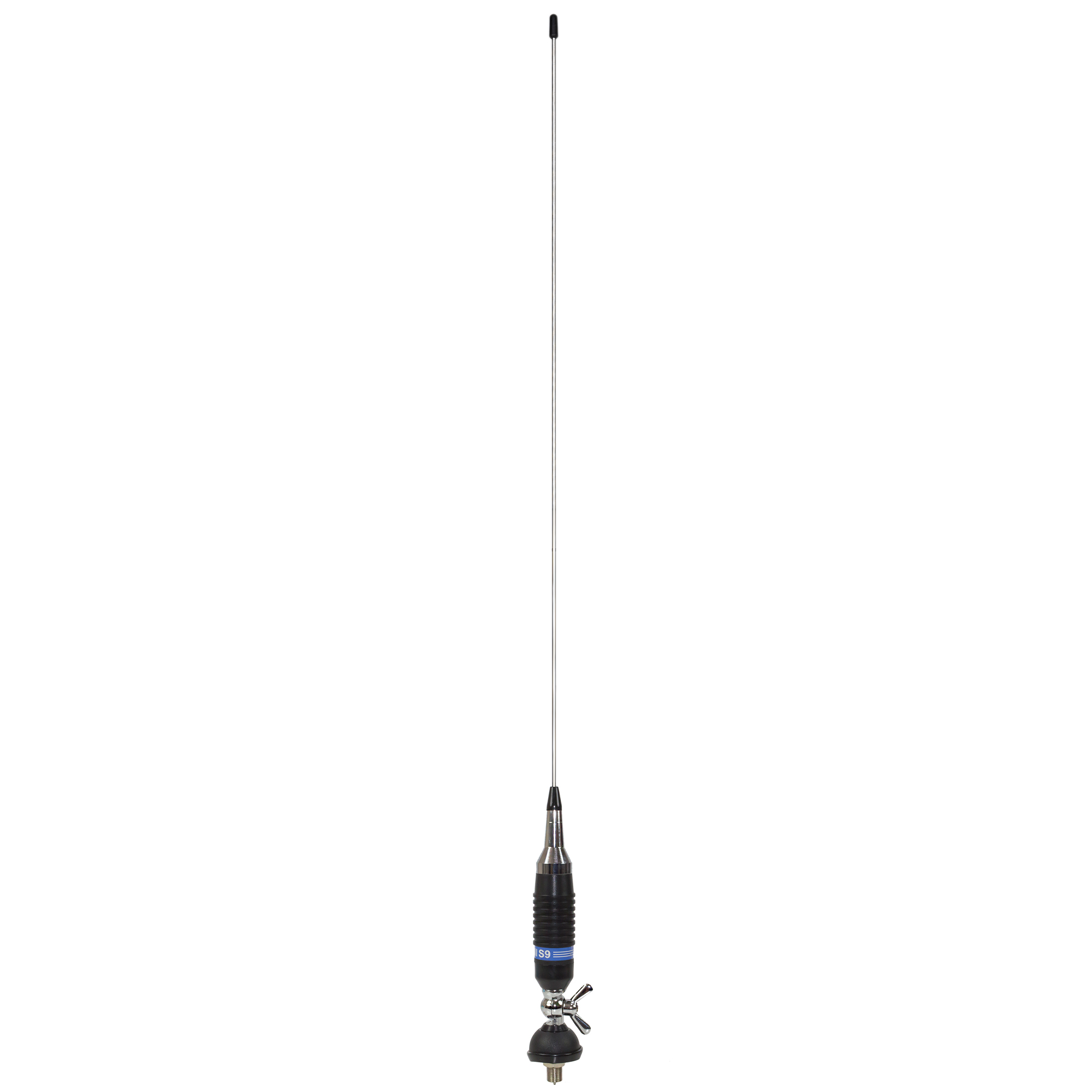

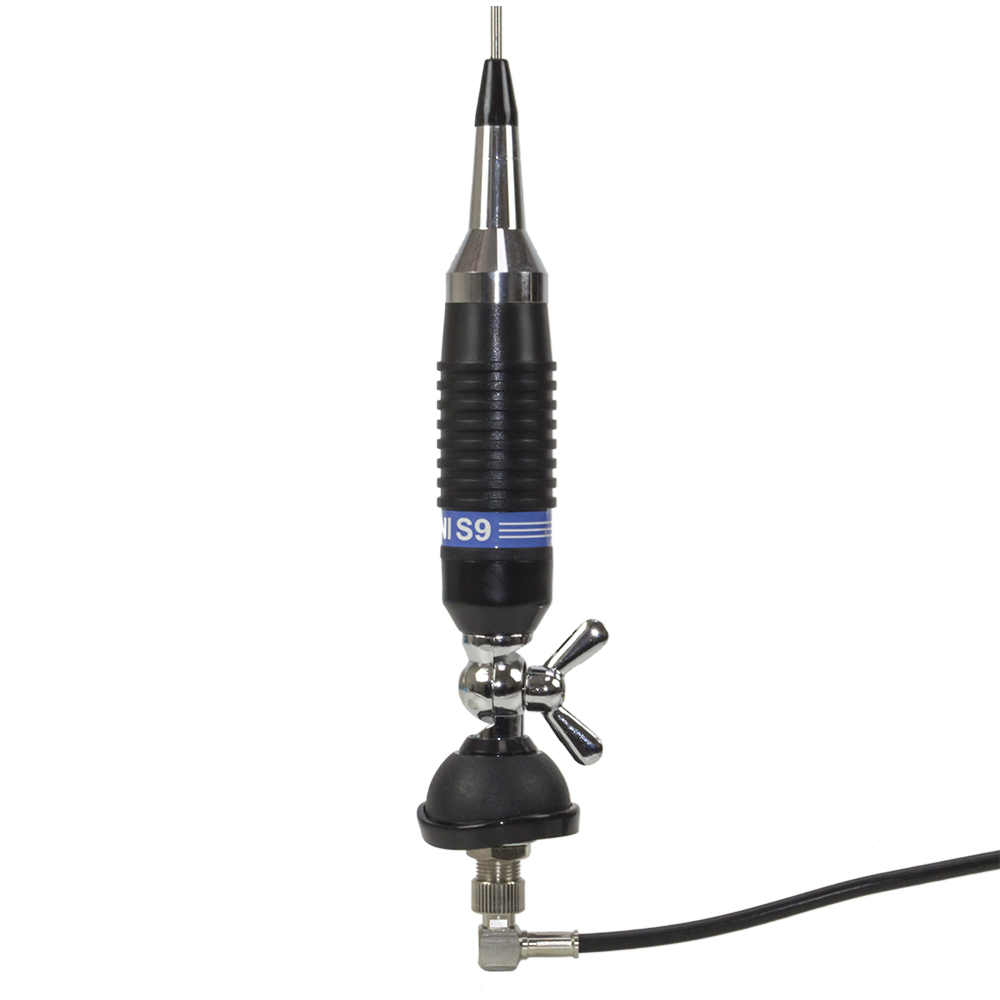

CB butterfly antennaThe CB antenna PNI S9 operates in the frequency range 26-30 MHz. With a length of 120 cm and a communication distance of up to 12 km (in ideal conditions of use), the PNI S9 CB antenna is perfect for drivers of trucks, trucks or cars who want a product that provides good communication in traffic. The SWR of less than 1.2:1 and the maximum supported power of 600W are essential specifications that recommend this product to the most demanding users. | |

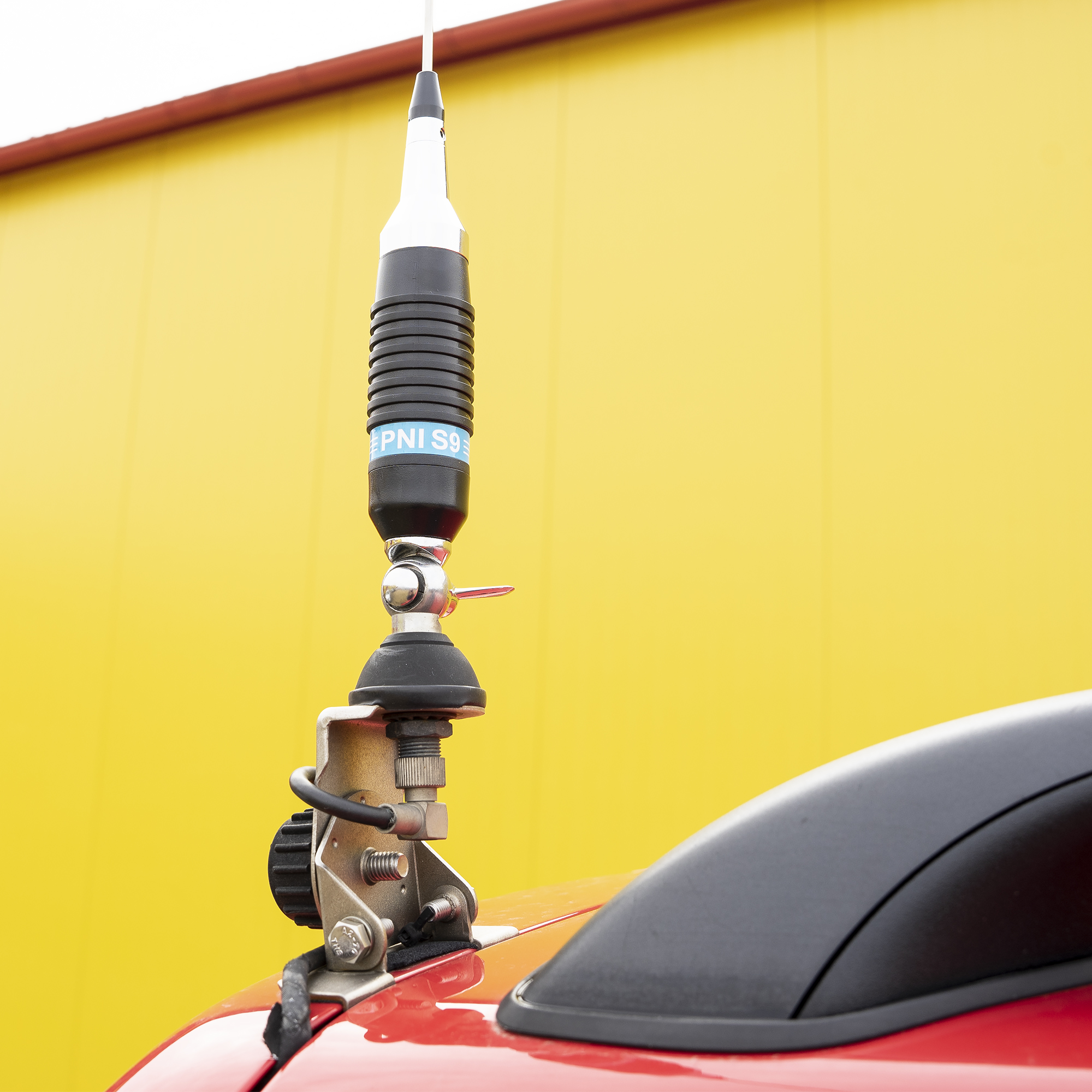

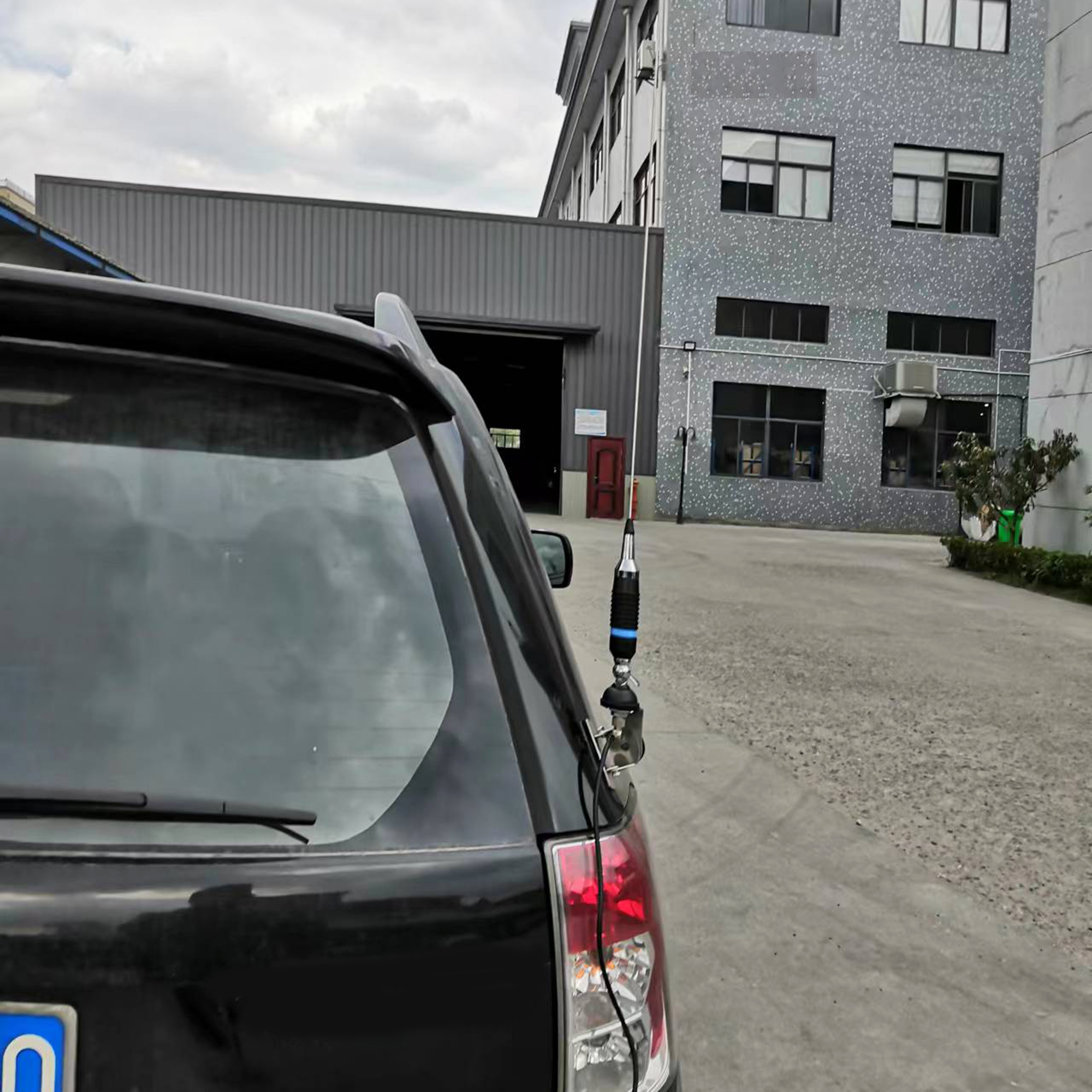

DV-type CB butterfly antennaWhen choosing a CB antenna, the following aspects should be taken into account: the way the antenna is attached (fixed mount or magnetic base), the length of the antenna and the positioning of the antenna on your car or truck. The CB antenna is a very important part of the station-antenna combination because the quality of the transmitted and received signal depends on it. The quality of PNI CB antennas is already known by the very low SWR values. | |

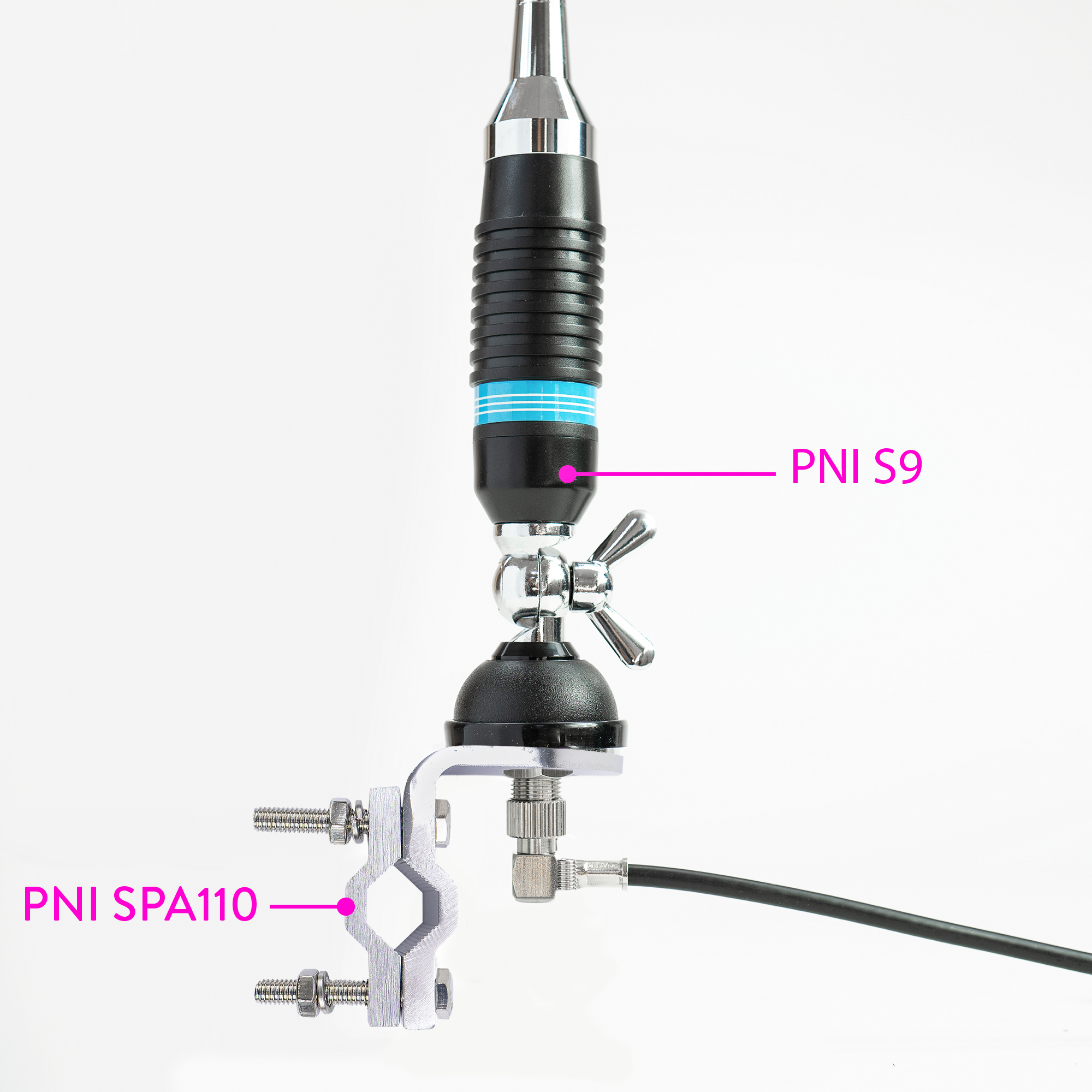

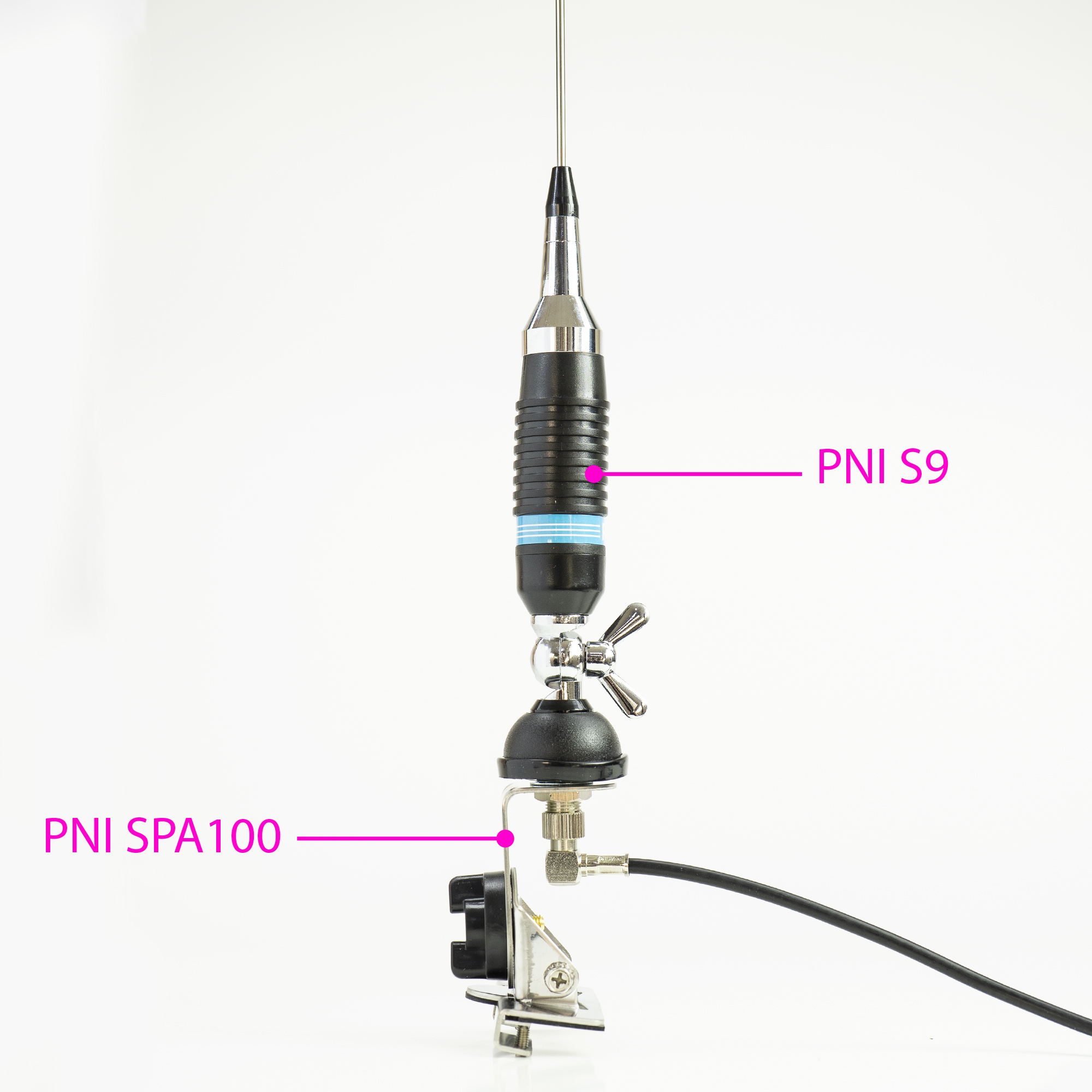

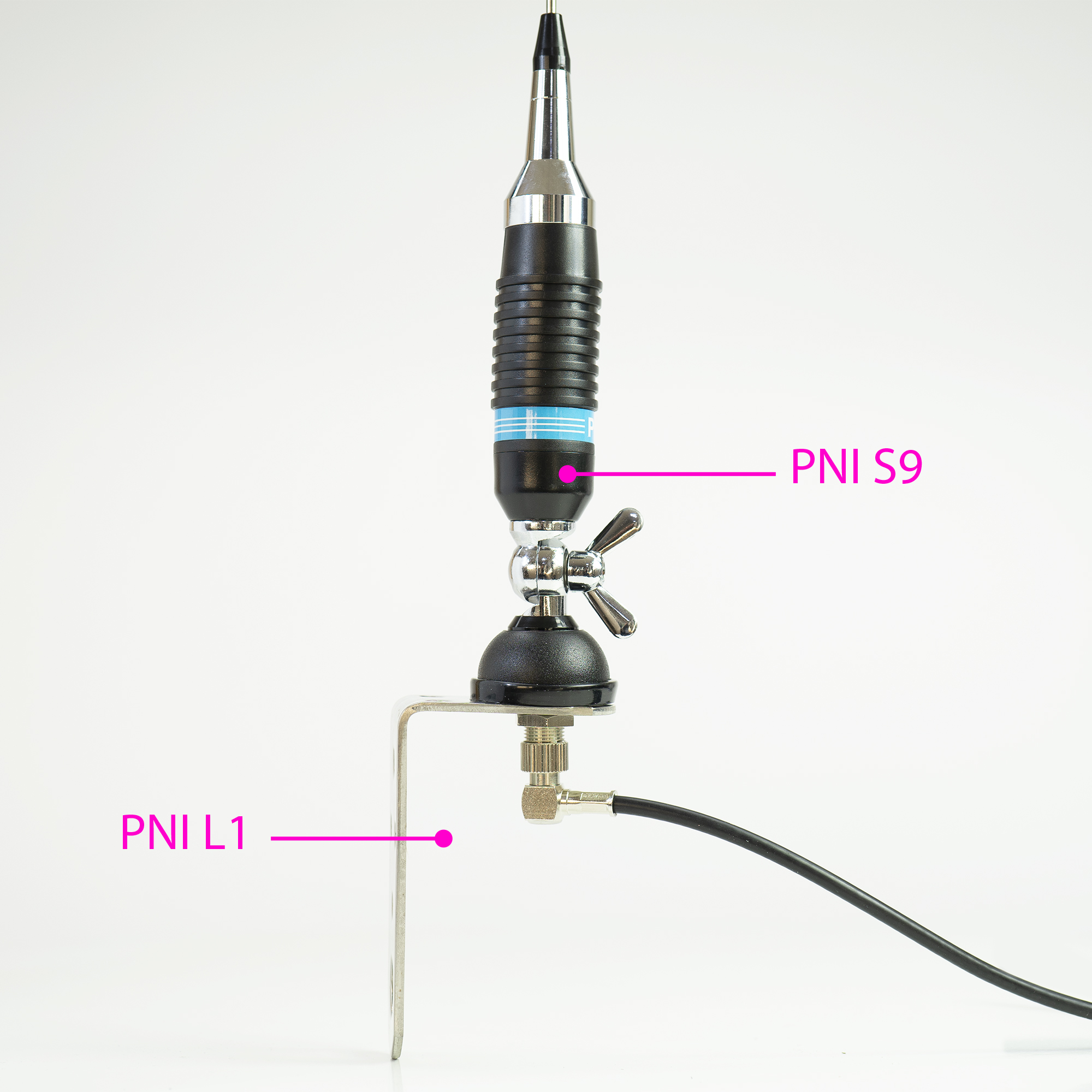

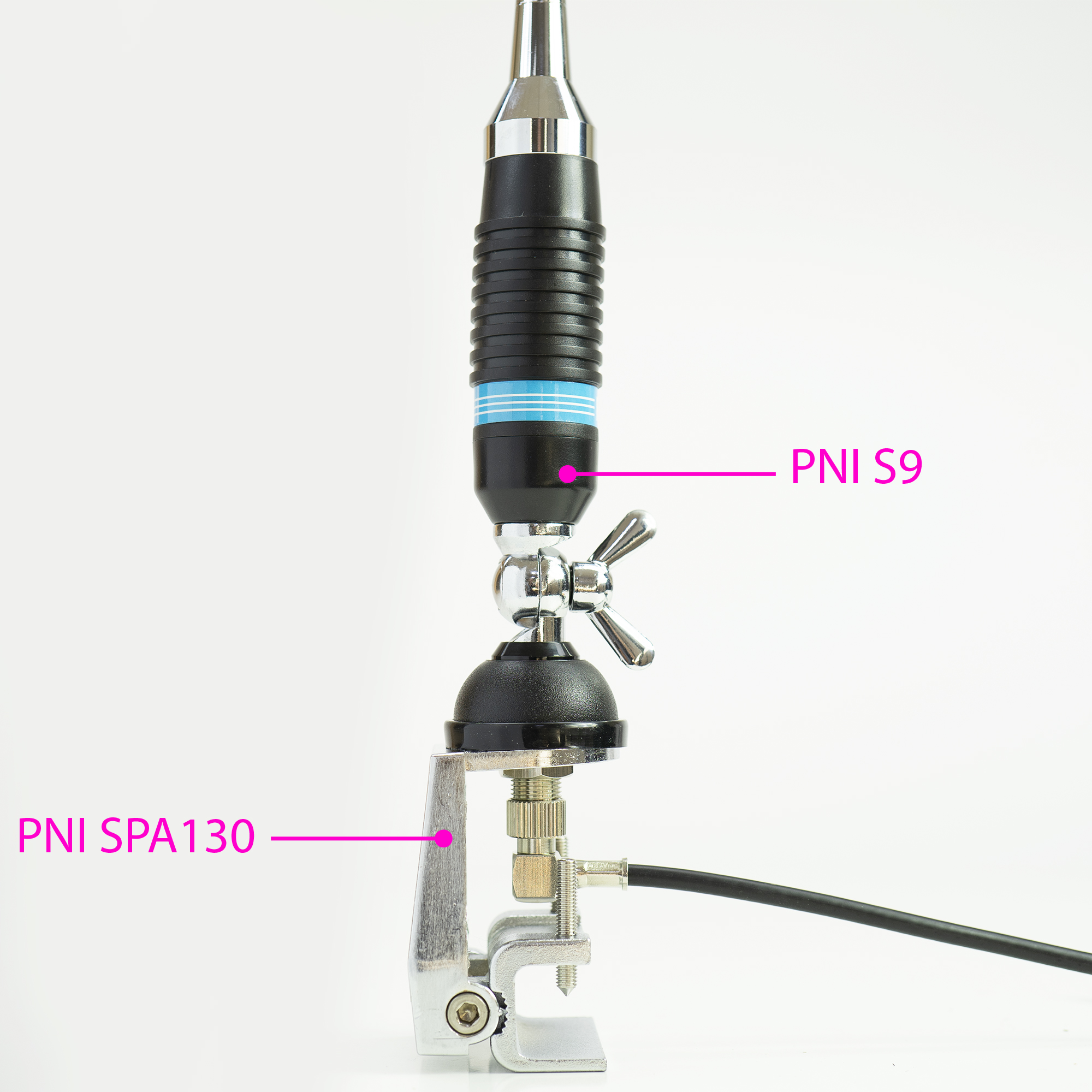

Compatible PNI accessoriesPNI offers a wide range of accessories recommended for butterfly antennas with included cable: PNI SPA100 bracket for trunk mounting, PNI SPA110 bracket for mirror or metal bar mounting, PNI SPA120 bracket for mirror mounting, PNI SPA130 bracket for mirror mounting, PNI L1 and L2 brackets. | |

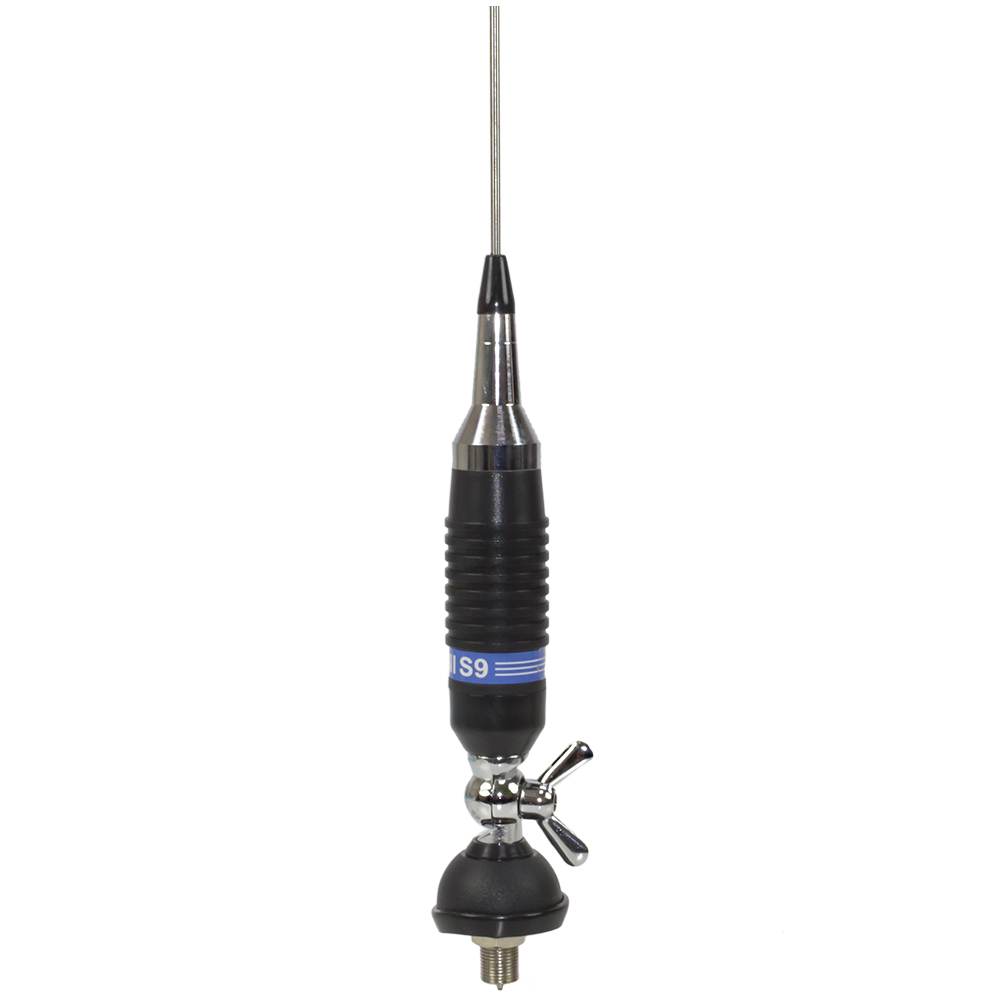

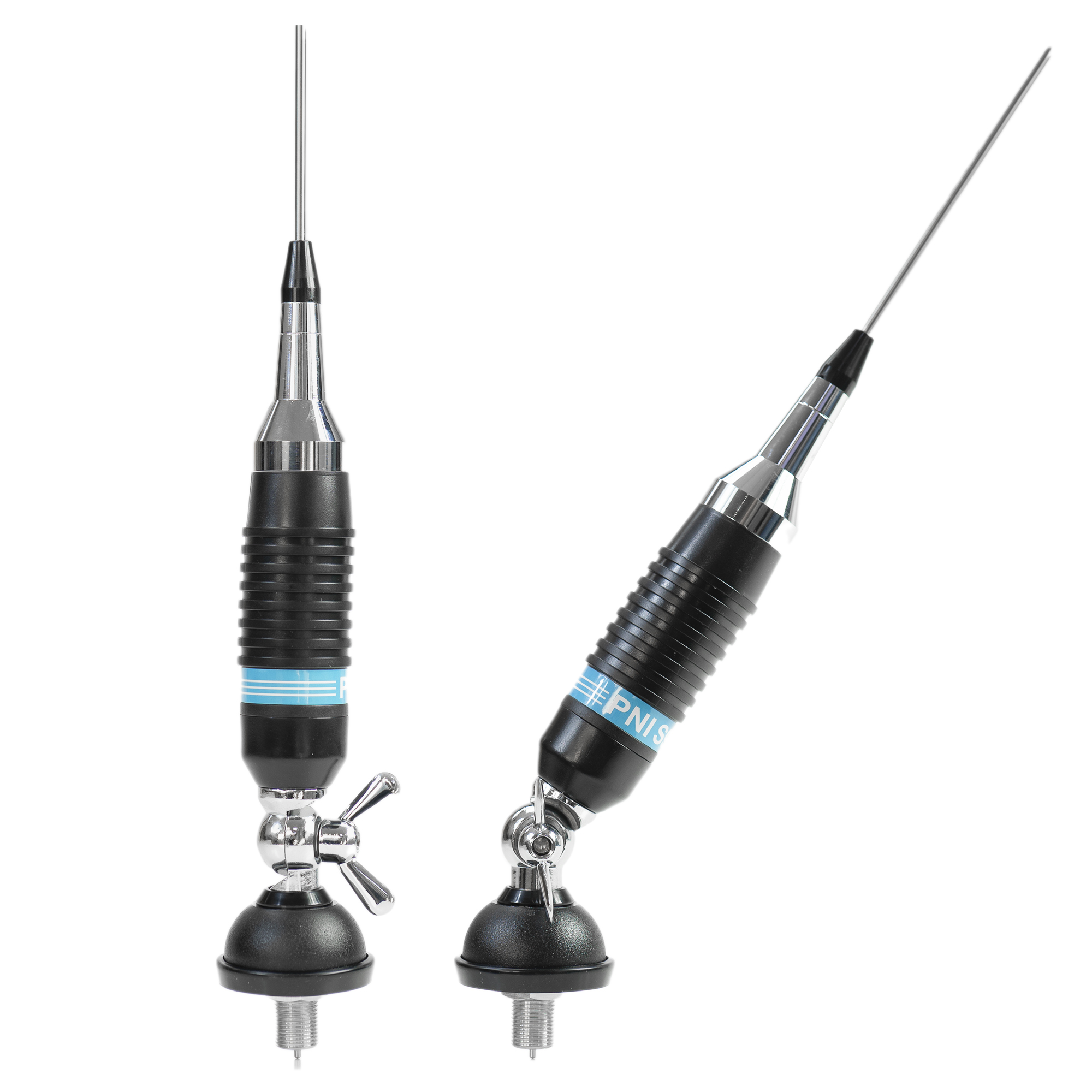

Tilt CB antennaThe butterfly screw allows the antenna to tilt to allow access in low locations such as parking lots or garages. We do not recommend tilting the antenna with a tilt angle greater than 30 degrees. A tilt angle too steep could affect the performance of the antenna |
Video presentation | |
Antenna CB PNI S9 with butterfly length 120 cm with RG58 cable 4m UK |
Technical characteristics
| Product Identification | |
| Product code | PNI-S9CAB |
| Work Tape | CB |
| Product color (spike) | Silver |
| Coil color | Black |
| General characteristics | |
| Working frequency | 26 – 30 MHz |
| Number of channels | 90 |
| Maximum applied power | 600W |

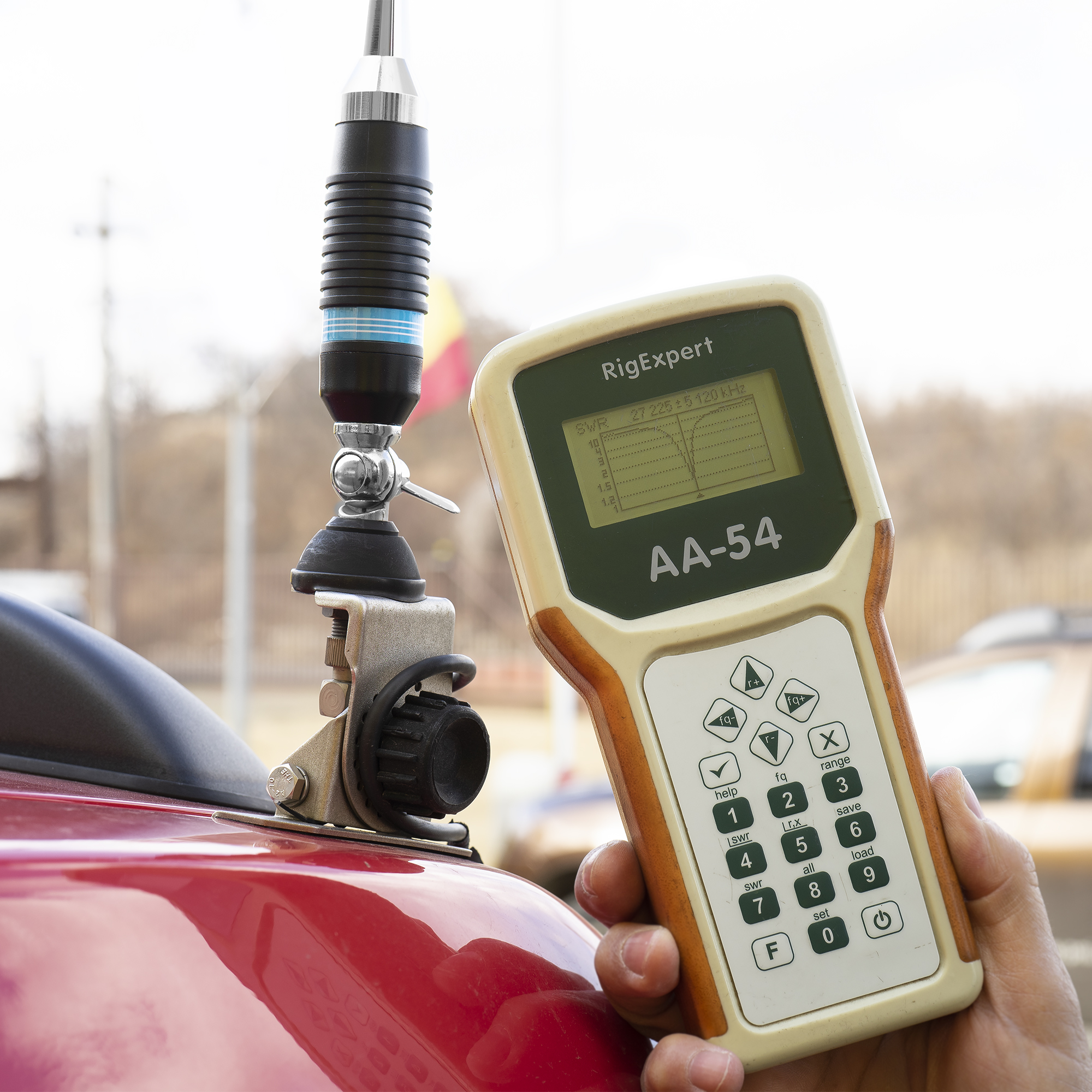

| Minimum S.W.R. in the center of the band | less than 1.2:1 |
| Length | 1265 mm |
| Impedance | 50 Ohm |
| Material | Stainless steel |
| Connector Type | DV |
| Hole diameter | 12.5 mm |
| Cable length | 4m |
| Weight | 438 gr |
| Dimensions | 45 X 45 X 1350 mm (mount included) |
| Polarization | Vertical |
| Working distance | 12 km |
| Operating temperature | -26°C ~ +80°C |
| Tilting | Yes, up to 90 degrees |

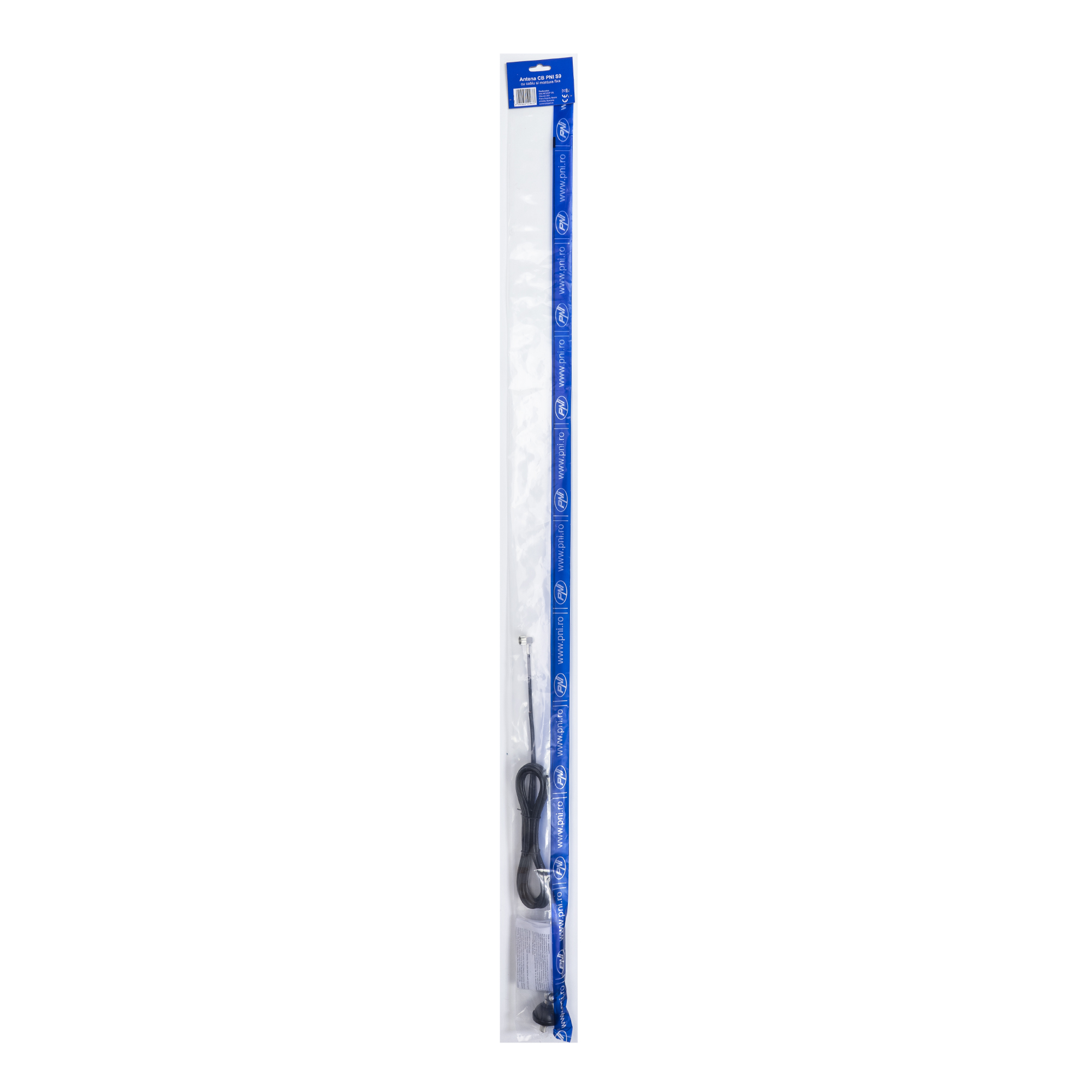

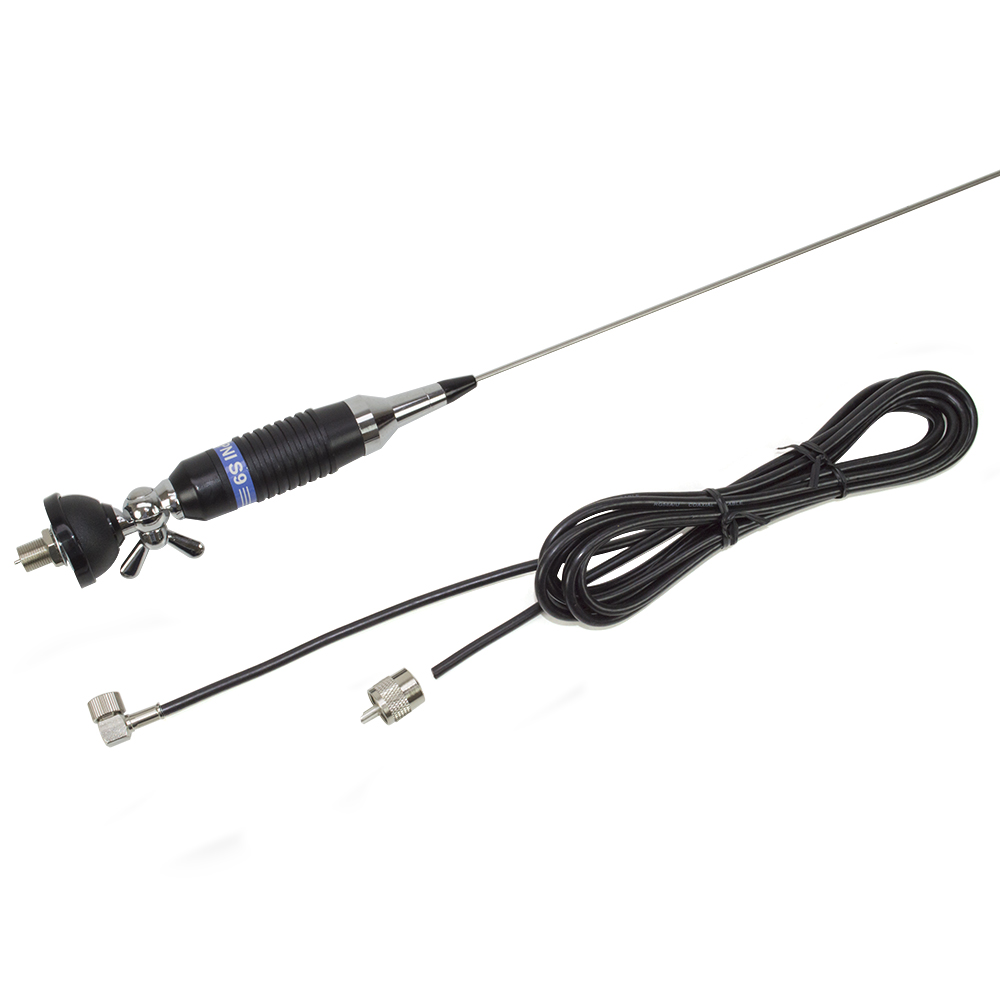

| The package contains | |
| Radio Station Antenna | Yes |
| RG58 Cable | 4 m |
| PL259 Plug | Yes |
| Butterfly Screw | Yes |
| Fixed Clamping Mount | Yes |
